Strasbaugh 6DSSP CMP parts.
More will added in the near future.
|
 |

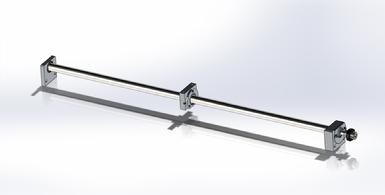

| 6DSSP Robot Travel Lead Screw |
|
| 6DS-SP Robot Travel Lead Screw
We can supply the complete assembly or parts of the assembly including all mounting hardware.
112286 - Retaining ring
108263 - Bearing
247130 - Lead screw nut assembly
108261 - Bearing dual, drive end
113817 - Lock nut
236206 - Coupler
164542 - Bearing mount drive side
164580 - Bearing mount end
|
 |

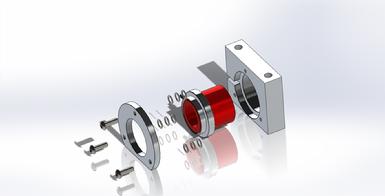

| 6DSSP Robot Lead Screw Nut 247130 |
|
| 6DSSP Robot Travel Nut Assembly
247130 - 6DSSP Robot Lead Nut
|
 |

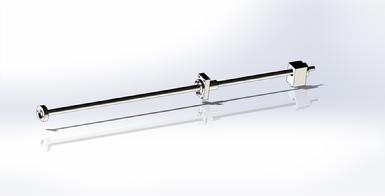

| 6DSSP Bridge Ball Screw Assembly 108151 |
|
| 6DSSP Bridge Ball Screw Assembly
There were two different nut assemblies we can rebuild them as well as provide new ball screws.
108151 - Type A
236062 - Type B
|
|

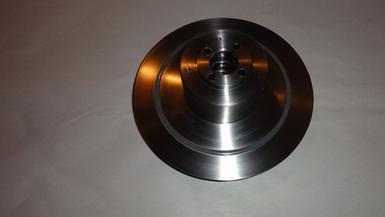

| Strasbaugh 6DS-SP Resilient Vacuum Chuck
Three passage shown on the left was reworked. We have reworked both the 3 passage and 4 passage with new urethane.
284075 -3 passage assembly
284379 -4 passage assembly
|
 |

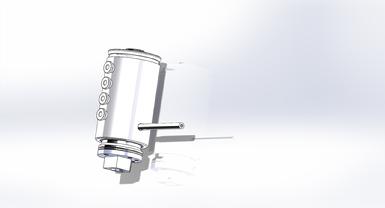

| Strasbaugh 4-Passage Union 284262 |
|
| Strasbaugh 6DS-SP 4 Passage Union 284262
We can repair the 4 passage union.
|
 |

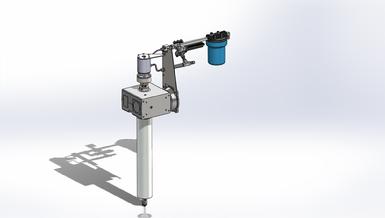

| Strasbaugh 2-Passage Union (220701) Replacement |
|
|
Strasbaugh 6DS-SP 2-Passage Union 220701
The union adds the benefit of being replaced in 10 minutes and is cheaper to replace.
|
| Part No |
Description |
| 6DSSP:104408 |
6DSSP,CHUCKSEAL |
| 6DSSP:104601 |
AMPL SVOBRSHL B30A8 .. |
| 6DSSP:104626 |
Board Motion-Control DCX-PC100 |
| 6DSSP:104627 |
Board Circuit DCX-BF-100-24 |
| 6DSSP:104785 |
Cable Carrier #15-3-048-0 |
| 6DSSP:106066 |
Load Cell Spindle |
| 6DSSP:106145 |
Module, Input, IDC5Q |
| 6DSSP:106146 |
Module, Output, ODC5Q |
| 6DSSP:106192 |
Module, I/O, AD3 CS Electrical |
| 6DSSP:106193 |
Module, DA5 |
| 6DSSP:106194 |
Module DA4T |
| 6DSSP:106195 |
Module B4 Dig Brain Brd |
| 6DSSP:106196 |
MTG Rack PB32HQ |
| 6DSSP:106197 |
Module AD10T2 |
| 6DSSP:106198 |
MTG Rack, PB16AH(2AMR) |
| 6DSSP:106199 |
Module I/O AD11HS |
| 6DSSP:106200 |
BMDUL,OPTO 22,B6 ANALOG B RAIN BRD 1 CS-ELEC .. |
| 6DSSP:106205 |
MODULE DCX-MC100-071 PRECISION MICR .. |
| 6DSSP:106528 |
Primary Table Motor |
| 6DSSP:106528R |
Primary Table Motor(Refurbished Motor) |
| 6DSSP:106529 |
Spindle Motor |
| 6DSSP:106529R |
Spindle Motor |
| 6DSSP:106769 |
MODEL AD6HS 0~5VDC .. |
| 6DSSP:106962 |
PWR SPLY 15VDC 3.OA HCC15 CONDOR .. |
| 6DSSP:107243 |
RELAY LY2-DC24 OMRON .. |
| 6DSSP:107375 |
Sensor Prox DW-AD-511-M8 |
| 6DSSP:107386 |
Sensor Prox Micro 922AB1-A4NL |
| 6DSSP:107406 |
Sensor Turck Leak Sensor |
| 6DSSP:107550 |
Switch Micro BZE6-2RN2 |
| 6DSSP:107558 |
Switch Micro |
| 6DSSP:107626 |
SW Vac SPST 30 PSI |
| 6DSSP:107772 |
PCB, RI |
| 6DSSP:107842 |
Fairchild Regulator TT6600 |
| 6DSSP:107844 |
XDCR 0-100 PSIA BARKSDALE.5 TO 5.5 VDC .. |
| 6DSSP:108103 |
SRG Ball Bushing Pillow Block |
| 6DSSP:108173 |
Iglide T500 Plain bearing Flange. |
| 6DSSP:108652 |
Elevator Drive Belt |
| 6DSSP:109107 |
EA COUPLING BODY PMCD16-02 |
| 6DSSP:110540 |
Reed Switch |
| 6DSSP:110546 |
Reed Switch with band |
| 6DSSP:110661 |
Filter Assembly |
| 6DSSP:110662 |
Filter assembly m26 |
| 6DSSP:110667 |
FLOW CONTROL..#10-32 X #10-32 KNOB ADJUSTMENT..CHROME PLATED, ZINC DIE CAST BODY |
| 6DSSP:110671 |
FLOW CONTROL..1/8 NPTE X 1/8 NPT KNOB ADJUSTMENT..CHROME PLATED, ZINC DIE CAST BODY |
| 6DSSP:110712 |
Vacuum gauge 0-30 panel mount |
| 6DSSP:110968 |
Valve 24VDC Solenoid |
| 6DSSP:111008 |
Vacuum valve 120VAC |
| 6DSSP:111015 |
Vacuum Valve |
| 6DSSP:111116 |
Solenoid Valve 24VDC |
| 6DSSP:111231 |
Stainless Steel Internal Retaining Ring for 1-3/4" Bore Diameter |
| 6DSSP:111369 |
O-ring .. |
| 6DSSP:111382 |
O-ring Buna |
| 6DSSP:111400 |
O-ring Buna |
| 6DSSP:111460 |
O-Ring Buna, pack of 25 |
| 6DSSP:111565 |
FTG,NYL,RED,1/8-27 X 10-32 .. |
| 6DSSP:111568 |
FTG,PE,STRGHTBRB,1/8NPT, 1/8BRB ..Pkg 100 |
| 6DSSP:111571 |
FTG,NYL,CONN,10-32UNF, 1/ 16TBG ..pkg of 100 |
| 6DSSP:111572 |
FrG,NYL,BARB,10-32UNF, 1/STBG (ID .. |
| 6DSSP:111576 |
FTG,NYL,ELB, 10-32,1/1 6TB G .. |
| 6DSSP:111577 |
FTG,NYL,ELB,1/8TBG,1/8NP T ..pkg of 100 |
| 6DSSP:111580 |
FTG,NYL,ELB, I O-32UNF, 1/STEG .. |
| 6DSSP:111582 |
FTG,NYL,TEE, 1/8BRB ..pkg of 100 |
| 6DSSP:111604 |
FIG,NYL,REDUCER 1/4 NPT X 10-32 UN ..pkg of 25 |
| 6DSSP:111867 |
FTG,SS,ELB, l/4TBG, 1/8MNPT,CO .. |
| 6DSSP:112030 |
FTG,BRS,ELB,1/4TBG, 1/4MNPT .. |
| 6DSSP:112042 |
FTG,PLYFLO,BRCHTEE, 1/4TB G, 1/4MNPT .. |
| 6DSSP:112065 |
FTG,PLYMAT,SWVLELB,1/4TB G,1/8NPT.... |
| 6DSSP:112084 |
FTG,BRS,CPLG,1/8FNPT .. |
| 6DSSP:112121 |
FTG,BRS,HXNIP,1/8NPT .. |
| 6DSSP:112193 |
FTG,SS,NIP,1/8NPT,CLOSB .. |
| 6DSSP:112294 |
FTG,BRS,PLG,1/8MNPT .. |
| 6DSSP:112802 |
Type 316 Stainless Stl Socket Head Cap Screw 8-32 Thread, 1/2" Length |
| 6DSSP:114057 |
Type 316 Stainless Steel Shim .002" Thick, 3/8" ID, 5/8" OD .. .. .. |
| 6DSSP:115494 |
115494- Robot rail assembly 2X per machine. |
| 6DSSP:199970 |
Outer Gimbal Pin |
| 6DSSP:199971 |
Inner Gimbal Pin |
| 6DSSP:199975 |
Outer Spacer |
| 6DSSP:199976 |
Inner spacer |
| 6DSSP:199977 |
Quill Socket |
| 6DSSP:217922 |
Nylon Socket Head Cap Screw 10-32 Thread, 3/8" Length, Off-White |
| 6DSSP:217926 |
18-8 SS Self-Lock Cup Point Socket Set Screw 1/4"-20 Thread, 1/2" Length |
| 6DSSP:217927 |
18-8 SS Self-Lock Cup Point Socket Set Screw 1/4"-20 Thread, 1/4" Length |
| 6DSSP:218034 |
Loadcell 100LB Sensotec Mod 31 |
| 6DSSP:219098 |
TUBING,PUMP 06485-15 P .. |
| 6DSSP:219126 |
Buna-N O-Ring AS568A Dash Number 166 |
| 6DSSP:219569 |
CYLINDER MRS-090.5-DXPZ |
| 6DSSP:219718 |
VALVE SOL TEE 24VDC 2WAY NC 1/4NOT .. |
| 6DSSP:219939 |
Elevator Fill Valve Air pilot |
| 6DSSP:219940 |
Elevator Drain Valve |
| 6DSSP:219946 |
VALVE SOLENOID 24VDC W/24" LEADS .. |
| 6DSSP:219947V |
VALVE,ASSY,8 STION WILSO3M 7HOOB VALVES .. |
| 6DSSP:219977 |
REGULATOR MODIFIED Z-15895-16253 .. |
| 6DSSP:220080 |
VALVE DBL SOLENOID 2-WAY 24VDC#031S .... |
| 6DSSP:220448 |
Nylon Socket Head Cap Screw 8-32 Thread, 3/8" Length, Black |
| 6DSSP:220488 |
Type 316 SS General Purpose Flat Washer No. 10 Screw Size, 7/16" OD, .02"-.04" Thick .. .. .. |
| 6DSSP:220605 |
STRAIN RELIEF,LIQUID TIG HT #3208 HEYCO |
| 6DSSP:220636 |
CYL,MRS-1712-DXP BIMBA .... |
| 6DSSP:220637 |
VALVE,FCP4 BIMBA .. |
| 6DSSP:220665 |
Retaining Clamp Ring |
| 6DSSP:220701 |
ROTARY UNION,2-PASS, CORROS,RES CS-MECH DEUBLIN 9311-100A |
| 6DSSP:220744 |
SNSR,VAC, DPX-600AIN (load chuck wafer sensor) .. |
| 6DSSP:220781 |
Wafer backing plate mounting screws |
| 6DSSP:224301 |
EA CYL,1-1/2" BORE,13"S TROKE STAI .. |
| 6DSSP:224553 |
EA LEAD NUT,ELEVATOR SLIDE ASSY,6DS-S |
| 6DSSP:224555 |
Elevator Guide Bearing |
| 6DSSP:224565 |
Robot, refurbished robot assembl. Scope of refurbishment:..All motors/Encoders will be evaluated and replaced if necessary. Associated wiring including connectors replaced. All bearings and support spline shaft...All sensors and wiring including conne... |
| 6DSSP:224565RCEx |
Robot, refurbished robot assembly Core Exchange. Scope of refurbishment:..All motors/Encoders will be evaluated, rebuilt or replaced. Encoders will be replaced. Associated wiring including connectors replaced. All bearings and support spline shaft...A... |
| 6DSSP:224587 |
SPLINED SHAFT with Nut |
| 6DSSP:224836 |
BRG,BALL,SS,RDL,FLNGD .2 50 ID X .375 OD, |
| 6DSSP:225239 |
EA CONN ASSY,JOSLYN-SUNBANK KIT #SA619 |
| 6DSSP:225240 |
EA CONN-ASSY,JOSLYN-SUNBANK KIT #SA619 |
| 6DSSP:225241 |
CONN-ASSY,JOSLYN-SUNBANK KIT #SA619 |
| 6DSSP:226562 |
CARR,SHIM RING,GIMBAL, .001" THK,ORANGE,150MM |
| 6DSSP:226563 |
CARR,SHIM RING,GIMBAL, .002" THK,CLEAR,150MM |
| 6DSSP:226564 |
CARR,SHIM RING,GIMBAL, .003" THK,GREEN,150MM |
| 6DSSP:226565 |
CARR,SHIM RING,GIMBAL, .005" THK,BLUE,150MM |
| 6DSSP:226606 |
Water-Resistant Clear Polyurethane Tubing 1/8" ID, 1/4" OD, 1/16" Wall Thickness |
| 6DSSP:233534 |
18-8 SS Binding Head Slotted Machine Screw 8-32 Thread, 5/16" Length |
| 6DSSP:234254 |
SEAL,SHAFT,SS,.625 ID x 1.063 OD x.250 |
| 6DSSP:234291 |
EA BRG,BALL,ANG.CONT.,1.000 x1.375x.1875 |
| 6DSSP:234293 |
EA WIPER,ROD,3/8IDx5/8ODx1/ 8WD,90A UR |
| 6DSSP:234316 |
EA BELT,90XL037.. |
| 6DSSP:234324 |
RET,SS,EXT,5PIRAL,27/32, PAS,MED DUTY,.031T qty is 25.. |
| 6DSSP:234344 |
LM,GUIDE,SS, l2x27OmmRAIL ,27x34mmTRUCK .. |
| 6DSSP:234377 |
EA BRG,SS,BALL,CONRAD,3/8x7 /8x.2812,SHIELDS |
| 6DSSP:234378 |
EA BRG,SS,BALL,CONRAD,1/2x1 1/8x.3125,SHLDS |
| 6DSSP:235021 |
6DSSP,WASHER,MANIFOLD |
| 6DSSP:235558 |
6DSSP,RET RING,GIMBAL, 151MM,1MM X 45DEG LIP |
| 6DSSP:236016 |
Vacuum Sensor |
| 6DSSP:236288 |
MOTOR,SERVO/ENCODER ELECTR O-CRAET .. |
| 6DSSP:236289 |
CABLE,LOADCELL W/CABLE TRA NSDUCER TECHN .. |
| 6DSSP:236323 |
Sensor Prox BIO 8-G05-AN6X |
| 6DSSP:236418 |
FT 0,1/8 TO 3/32 TUBE C UPLING ..PKG of 10.. |
| 6DSSP:236514 |
PTG,QUICK DICONNECT,E BOW, 1/8 B .. |
| 6DSSP:236626 |
BELT,MXL,5/16WD,29OTOOTH URETHANE .. |
| 6DSSP:236641 |
CONN,PIN M39029/31-241 .. |
| 6DSSP:236642 |
CONN,SOCKET M39029/32-26 0 .. |
| 6DSSP:237699 |
POWER SUPPLY +24VDC 1 1A,AC .. |
| 6DSSP:238007 |
BELT,4ODP, 180-TOOTH ,IJRET HANE,KEVLA .. |
| 6DSSP:238008 |
BELT,4ODP,190-TOOTH,URET HANE,KEVLA .. |
| 6DSSP:238018 |
Silicon Stoppers |
| 6DSSP:238069 |
FTG,PVDF,BRB,1/8TBG, 10-32UNF .. |
| 6DSSP:238170 |
XDCR E-P FAIRCHILD TT7800-004 0-1OV IN 0-3OPSIG .. |
| 6DSSP:239003 |
REDTJCER,PLNTRY,INLINE, 28: 1,CG123 .. |
| 6DSSP:239023 |
Amp, 200V, Yaskawa SGDA-01 |
| 6DSSP:239023REP |
AMP,200V,YASKAWA SGDA-0l AS .. |
| 6DSSP:241722 |
6DSSP,RTZ,ROBOT SCREW CO VER M FAB-MACH 6DSSP-241722D1..242861 1.00 EA 6DSSP END EFFECTOR,1 PC ARM |
| 6DSSP:241766 |
MTR,AC SERVO,YASKAWA SGM P-01U312S .. |
| 6DSSP:241766REP |
MTR,AC SERVO,YASKAWA SGM P-01U312S .. |
| 6DSSP:241807 |
CABLE ASSY,10 M,ENCODER, YASKAWA,DP9320089-3A .. |
| 6DSSP:284144 |
Adjustable position elbow with 10-32 thread and built-in barb. |
| 6DSSP:284146 |
Screw plug with 10-32 external thread. Used to block unused port |
| 6DSSP:300745 |
SCREW,SS,8-32x3/16x3/16L SHLDR,SLT |
| 6DSSP-225001 |
6DSSP ASSY OVERARM CYLINDER .. |
| 6DSSP-236296 |
Cylinder 2 Diax1/2 Stoke |
| 6DSSP-243447 |
Front Op Interface, No Arm |
| 6DSSP-243448 |
Side Wal Mount Op Interface |
|
|
